MONOLINE

3H, 2V or bifacial, the smart solution for single-row pv tracker

MONOLINE

3H, 2V or bifacial, the smart solution for single-row pv tracker

MONOLINE 3H
90 panels per row

For hilly terrains

Monoline 3H is our single-row tracker 60 meters long that holds three rows of modules placed horizontally. It is used in steep terrain where the intention is to minimize the movement of land and civil works. It is also used when the contour of the plot where it is installed is irregular and therefore makes much better use of the available area.

3H has its own cleaning robot, specially designed for it. Know more!

MONOLINE 2V
60 panels per row

For bifacial

It is used primarily with a bifacial module. For the rest of modules, it is recommended when there are irregular contours in the plots to take better advantage of the available space. This means it has a better occupation coefficient.

MONOLINE BIFACIAL 2V-60B

Our newest single-axis solution for bifacial

The best companion for bifacial modules that will soon become the dominant design.

Closer to the sun

Monoline 2V-60 Bifacial is the perfect match to maximize the gain of bifacial modules, which are becoming mainstream, bringing higher yields and lower LCOE.

Advantages

Large height to width aspect ratio maximizes rear side irradiance, reducing the shade intensity and mismatch loses.

Improve your production

Depending on albedo and other factors, the combination of PVH MonoLine single-axis 2V and bifacial modules increases yield, ranging from 10%-15%, making this technology a major step forward to PV technology accelerating market growth.

Wind tunnel test performed

We have carried out extensive wind tunnel tests to identify the loads that act on the structure, taking into account the height of the tracker on the ground and the longitudinal groove.These tests include the damping factors of the structure, around 15% and identify the most favorable rest positions in case of high wind speeds to avoid the flutter phenomenon.

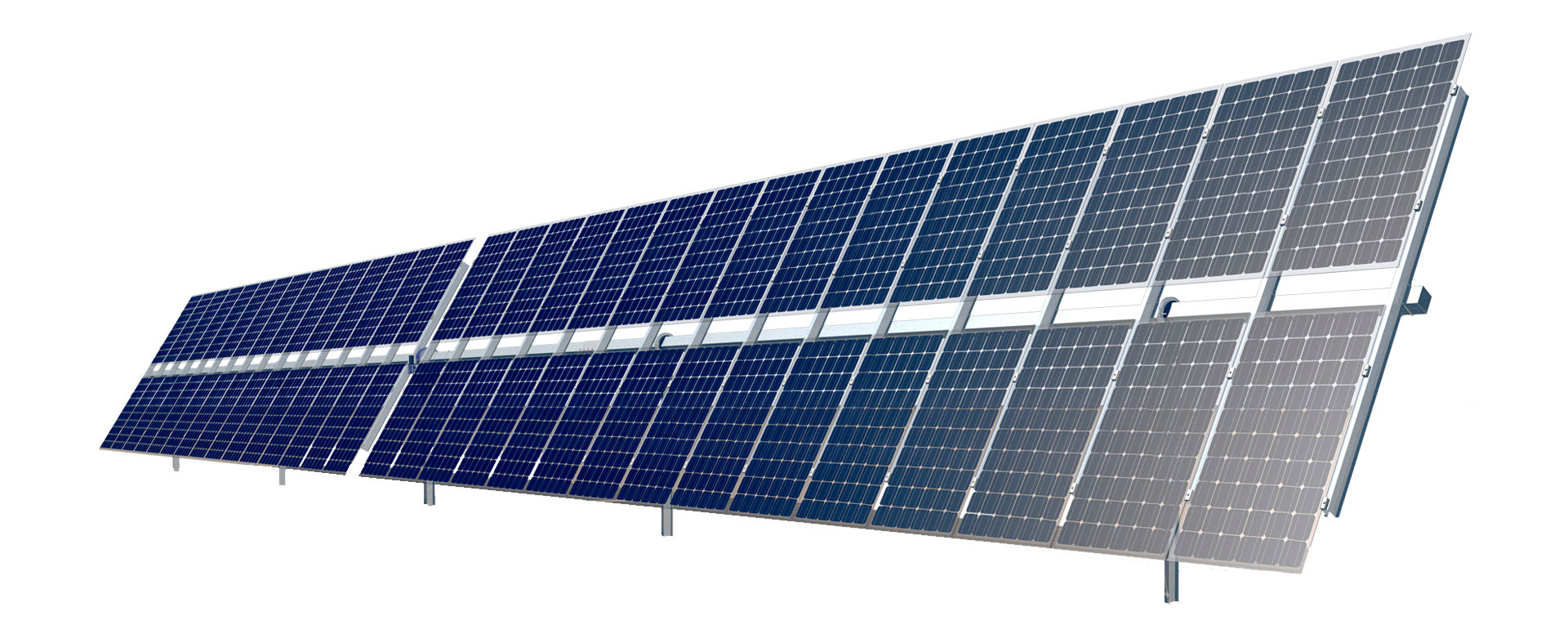

Monoline bifacial tracking solution by PVH

Our technology allows

  • More light to be captured, because the rear-side of the panel also benefits from sun exposure.
  • Best companion for bifacial modules: the Monoline 2V-60B, a single-axis tracker that supports 60 panels per row.

The design of PVH’s market-tested tracker has been forged during years of experience in the global utility-scale PV market, and incorporates over 6 years of lessons learned, earned from the perspectives of multiple stakeholders of PV projects worldwide. The result is an investment-grade solar tracker that addresses the multiple needs of the owner and EPC alike, driving down the levelized cost of electricity of PV energy.

Monoline single axis solar tracker for bifacial panels

Design Approach

Especially suited for hilly terrain and irregularly shaped plots, as well as those with obstacles.

Only has five foundations per tracker, which provides the EPC with a quicker and less expensive installation,

Direct module attachment to rigid steel panel rails eliminate vibratory/thermal expansion and over-torquing risks associated with aluminum sandwich clamps.

Robust structure

25-year design life.

Easy to operate.

Integrates with most SCADAs for remote control.

Panel rails are made of HDG steel or Magnelis, and are apt for direct module attachment and grounding.

Securely attached to the torque tube, which has splices made with easy-to-install bolt-on clamps eliminating field welding or time consuming tasks.

Panel Rails

HDG Steel or Magnelis, apt for direct module attachment and grounding. Securely attaches panel rails to torque tube.

Gear Box

Transfers motive force from motor to slew drive/ 0.37 ,0.55 ,or 0.75hp (depending on row length)

Torque Tube

Splices made with easy-to-install bolt-on clamps eliminating field welding or time consuming tasks.

Transmission

Transfers motive force from gear box to torque tube

Inclinometer

Detects tilt angle of array

Do you want more information about Monoline?
Contact our experts:

Solar Tracker solutions for PV plants by PVH

Cleaner 3H

The cleaning robot solution, specially developed to optimize the performance of solar plants with Monoline 3H
